Select folder window

Allows selecting a folder from the folder tree.

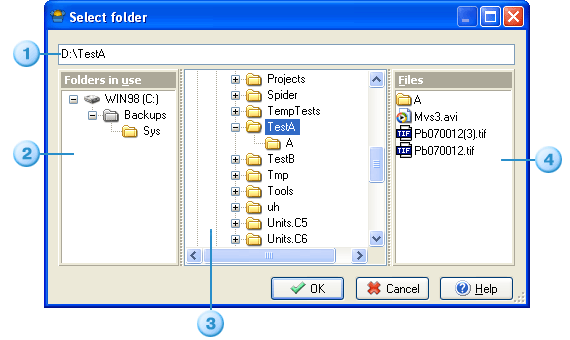

Folder select window

Window consists the following elements:

  1. Selected folder.
    This field contains the path to selected folder. You can assign a folder by entering the path manually using keyboard or select it from the used folders tree (2) or folder tree (3).
  2. Used folders tree.
    The tree indicates folder those are used in the task. If a folder is used in an any action of the current task an icon is colored otherwise it is gray. If a folder is used more than once in the task it is recommended that use select it in this tree. By selecting needed folder in the tree you will change currently selected folder.

    This tree is located on the panel which can be easily minimized/maximized or sized across. Use left mouse click on the panel caption or Alt + Underlined symbol in the caption to maximize/minimize panel. To change panel size move dotted line in right of the panel. Panel will be minimized automatically when the panel size is minimum.

  3. Full folders tree.
    It contains all folders those are available in the system. Besides local folders you can select LAN folders. By selecting needed folder in the tree you will change currently selected folder.
  4. Files window.
    This window shows all files those containing in the selected folder. Window does not affect on the selected folder.

    This window is located on the panel which can be easily minimized/maximized or sized across. Use left mouse click on the panel caption or Alt + Underlined symbol in the caption to maximize/minimize panel. To change panel size move dotted line in right of the panel. Panel will be minimized automatically when the panel size is minimum.
